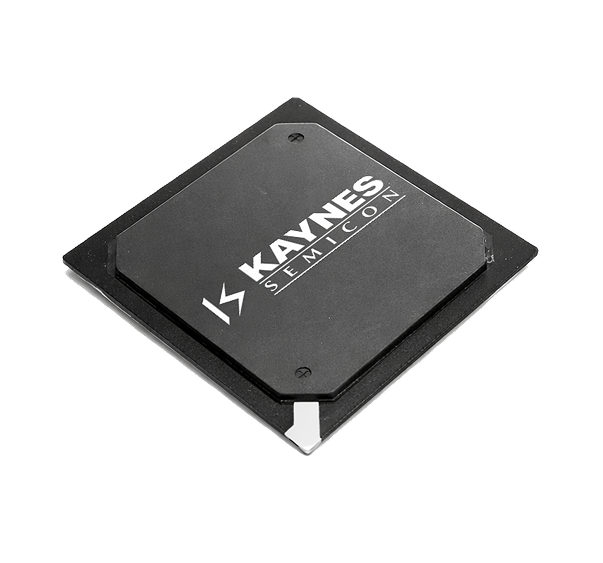

Ball Grid Array (BGA) packages feature a grid of solder balls on the underside of the package that connect the device to the PCB.
This structure allows for higher pin counts, better electrical and thermal performance, and improved reliability compared to traditional leaded packages. BGAs are widely used in CPUs, GPUs, FPGAs, memory modules, and network processors.
Advantages of BGA package
High Input Output Density
Supports large numbers of connections within a compact footprint.
Improved Signal Integrity
Short, uniform signal paths reduce inductance and noise.
Superior Thermal Management
Efficient heat dissipation through the PCB and package body.
Reduced Crosstalk
Controlled impedance pathways lower signal interference.
Self-Alignment During Reflow
Surface tension helps the package self-center during soldering.
Mechanical Robustness
No fragile leads to bend or break.
Lower Assembly Defect Rates
Automated reflow processes ensure consistent solder joints.
Better Electrical Performance OT
Uniform solder joints reduce fatigue under thermal cycling.
Scalability for Multiple Sizes
Available in various ball counts and package sizes.
Reliable Under Vibration and Shock
Ideal for automotive and industrial applications.
Cost-Effective for High-Volume
Manufacturing in high volume. Well-supported in global SMT lines.
Long Product Lifecycle
Suitable for devices with extended reliability requirements.
